LED Video Walls 101: What They Are and How They Work

Jan. 29, 2024

LED video walls have become a prominent and captivating feature in various settings, from corporate spaces to entertainment venues. Understanding what LED video walls are and how they work can provide insights into their versatility and impact. Here's a comprehensive guide to LED video walls, covering their definition, components, and functionality:

1. Definition of LED Video Walls

An LED video wall is a large display made up of individual LED panels seamlessly arranged to form a single, cohesive screen. These walls can vary in size, offering a visually striking platform for showcasing content, visuals, and dynamic information. LED video walls are commonly used in public spaces, events, retail environments, and command centers.

2. Components of LED Video Walls

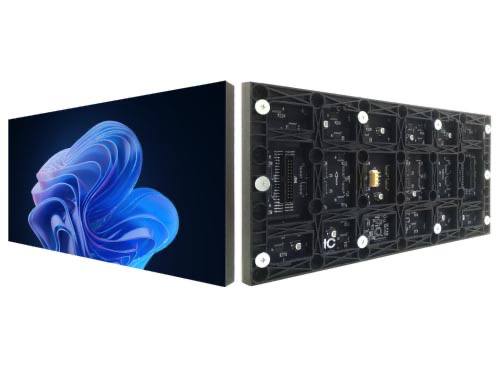

2.1 LED Panels: The basic building blocks of an LED video wall are individual LED panels. These panels contain an array of light-emitting diodes (LEDs) that emit light when an electric current passes through them.

2.2 Pixel Pitch: Pixel pitch refers to the distance between the center of one LED pixel to the center of the adjacent pixel. A smaller pixel pitch results in higher resolution and image clarity.

2.3 LED Driver ICs: Integrated circuits (ICs) control the brightness and color of each LED. LED driver ICs play a crucial role in ensuring uniformity and accuracy of colors across the entire video wall.

2.4 Power Supply: A power supply unit provides the necessary electrical power to the LED panels and associated components, ensuring optimal performance.

2.5 Video Processor: The video processor is responsible for receiving and processing input signals, converting them into a format suitable for the LED panels. It plays a key role in delivering high-quality visuals.

LED Video Walls

3. How LED Video Walls Work

LED video walls operate by combining the individual LED panels to create a seamless display. The basic working principle involves:

3.1 Displaying Images: The video processor receives input signals, such as video feeds or content from various sources.

3.2 Processing and Scaling: The video processor processes the incoming signals, scales them to match the resolution of the LED panels, and optimizes the content for display.

3.3 Sending Signals to LED Panels: Processed signals are sent to the LED driver ICs, which control the brightness and color of each LED pixel on the panels.

3.4 Creating a Seamless Image: The coordinated illumination of the LED pixels across all panels results in a cohesive and high-resolution image, forming the complete LED video wall display.

4. Applications of LED Video Walls

LED video walls find applications in various sectors:

  • **Digital Signage:** Displaying dynamic content and advertisements in retail spaces and public areas.

  • **Corporate Environments:** Command centers, boardrooms, and lobbies use LED video walls for presentations and visual communication.

  • **Entertainment Venues:** Concerts, sports events, and theaters use LED video walls for immersive visual experiences.

  • **Control Rooms:** Critical infrastructure sectors use video walls for monitoring and managing operations.

5. Advantages of LED Video Walls

5.1 High Brightness: LED video walls offer bright and vibrant displays suitable for well-lit environments.

5.2 Seamless Integration: The modular nature of LED panels allows for flexible configurations, enabling the creation of large and seamless displays.

5.3 Energy Efficiency: LEDs are energy-efficient, contributing to lower power consumption compared to traditional display technologies.

5.4 Longevity and Reliability: LED technology is known for its durability, providing a reliable and long-lasting solution for visual displays.

Frequently Asked Questions

Q: What is the lifespan of LED video walls?

A: The lifespan of LED video walls can vary based on usage and quality. Generally, well-maintained LED panels can last for tens of thousands of hours.

Q: Can LED video walls be used for outdoor applications?

A: Yes, there are outdoor-rated LED video walls designed to withstand weather conditions. These are commonly used for outdoor advertising and events.

Q: How is pixel pitch important in LED video walls?

A: Pixel pitch determines the resolution and clarity of the display. A smaller pixel pitch results in higher resolution and is crucial for applications requiring detailed visuals.

LED video walls have revolutionized visual communication, offering a versatile and impactful solution for a wide range of applications. Understanding their components, working principles, and advantages can help businesses and organizations leverage the power of LED video walls for immersive and engaging displays.
