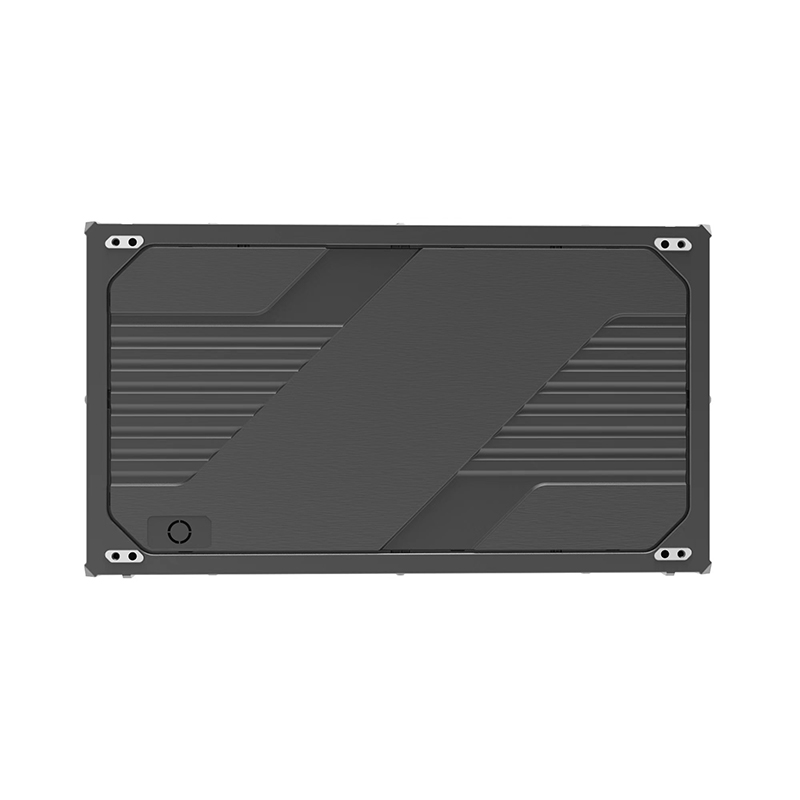

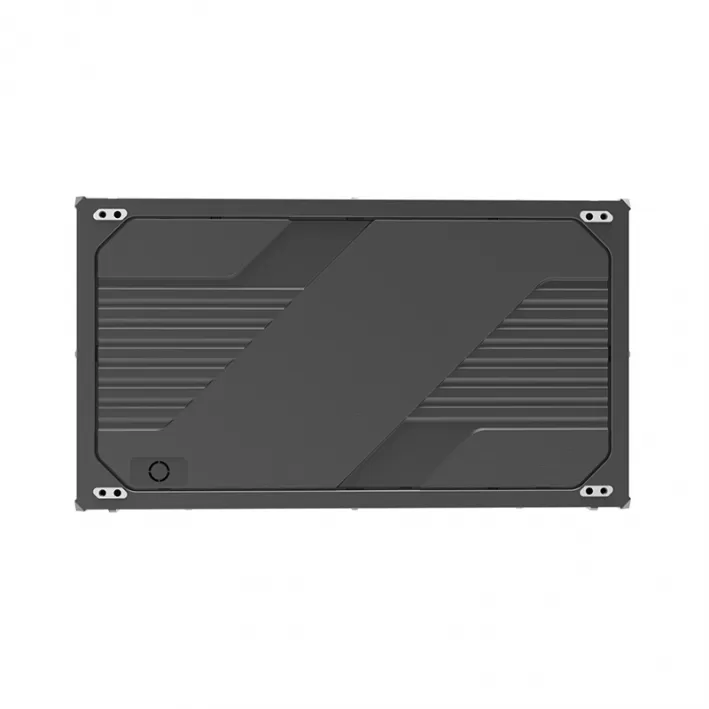

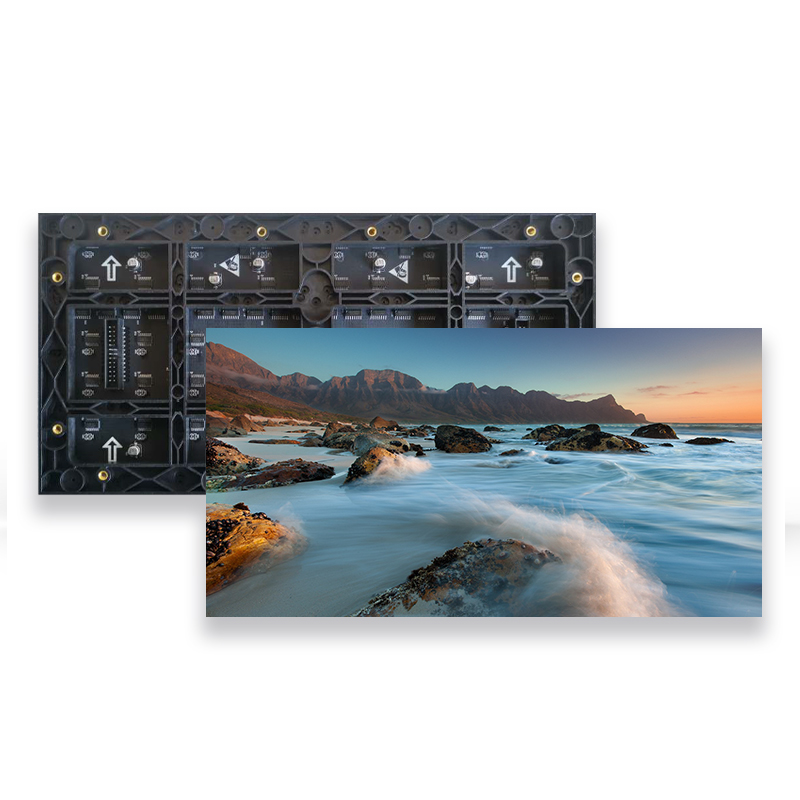

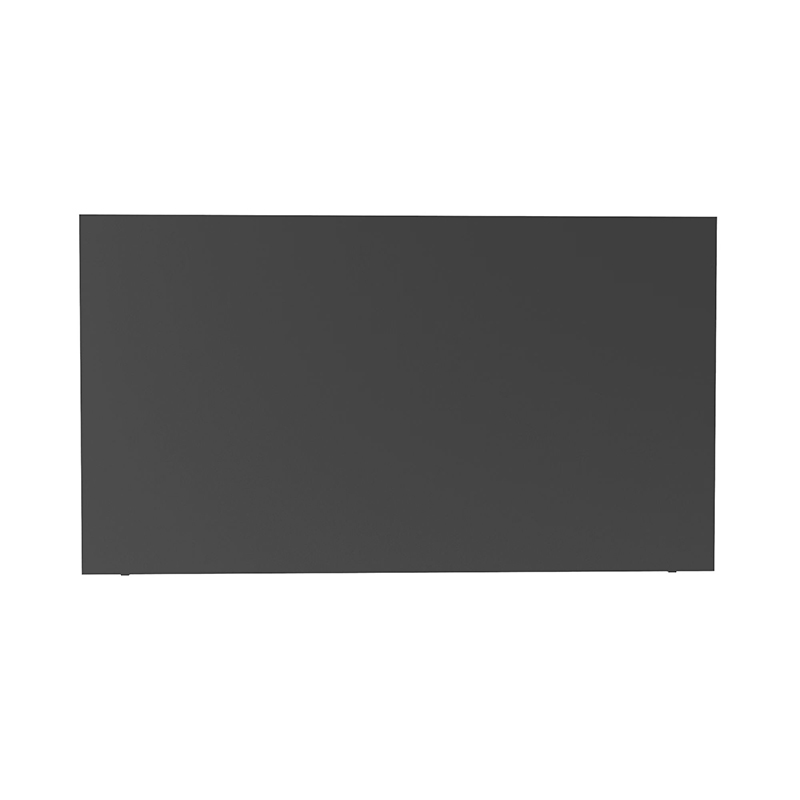

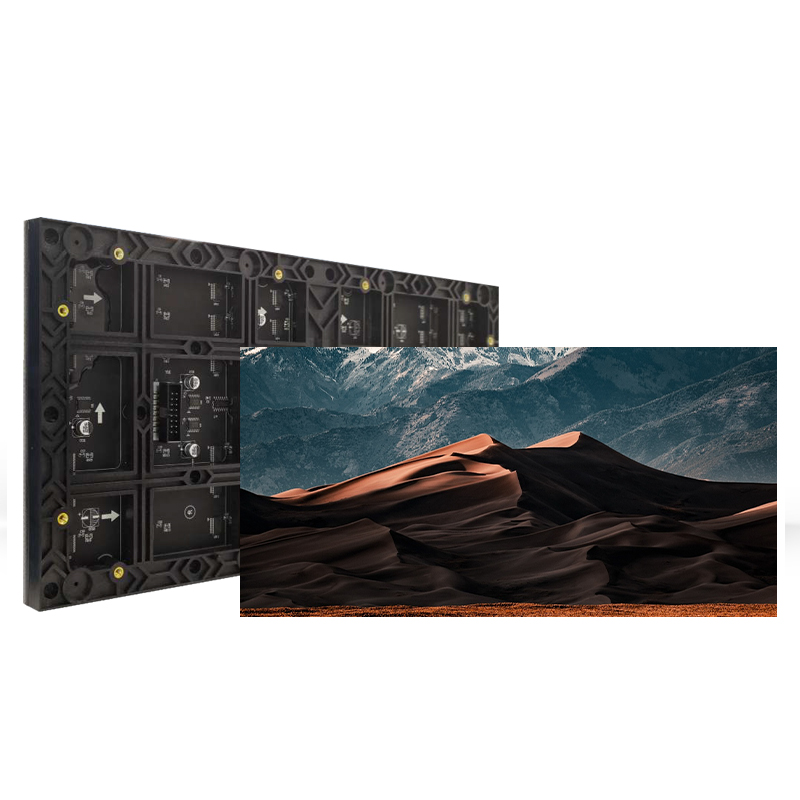

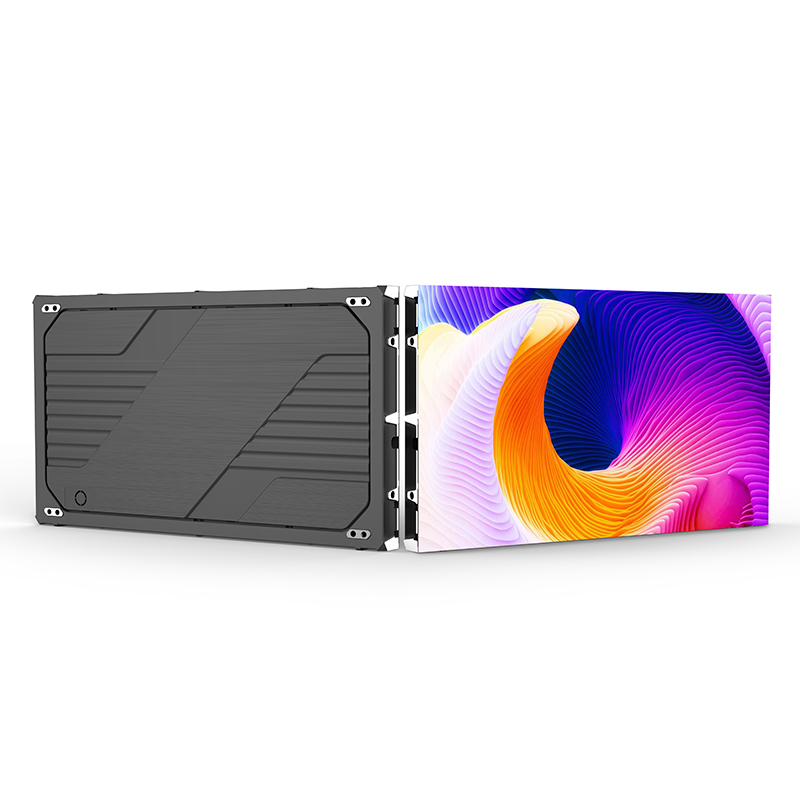

P1.86 Small-Pitch Full-Color LED Display

Pixel pitch: ≤1.86mm

Pixel density: ≥288,906 dots/㎡

Module size: 320mm × 160mm

Module resolution: ≥172 × 86

Brightness (cd/㎡): 500, adjustable

Horizontal/vertical viewing angle: ≥160°

Refresh rate: ≥3840Hz

Frame rate: 60Hz

Module power consumption: ≤18W

Peak power consumption: ≤352W

Lifespan: ≥200,000 hours

LED Screen Display


Designed for seamless integration into any indoor setting, this LED screen is versatile and adaptable. Its slim profile and lightweight construction make it easy to install and configure, while its high refresh rate and superior brightness ensure optimal performance in any lighting conditions.

With advanced technology and reliable performance, our Small Pitch p1.875 full-color LED Screen is the perfect choice for a wide range of indoor applications, including retail environments, corporate settings, event venues, and more. Whether you are looking to create an immersive digital display, engage customers with interactive content, or enhance the visual impact of your presentations, this LED screen is the ultimate solution for delivering exceptional visual experiences.


Pixel Pitch(mm)1.86
Display resolution(dots)172×86=14792
Physical Density (Pixels/ ㎡)288,906
LED EncapsulationSMD1515
Pixel specifications1R1G1B
Module Size(mm)L320×H160×T15
Module Weigth(g/pcs)580
Driving mode1/64SConstant current drive
Module Consumption(W)≤18
Max. Power Consumption(w/㎡)≤352
Refresh Frequency (Hz)3840
Optimum Viewing AngleH:160° V:160°
Gray Scale (bit) 12/16
Frame Frequency (Hz)≥60
Module Working Voltage(V)4.8-5.2

Product parameters
