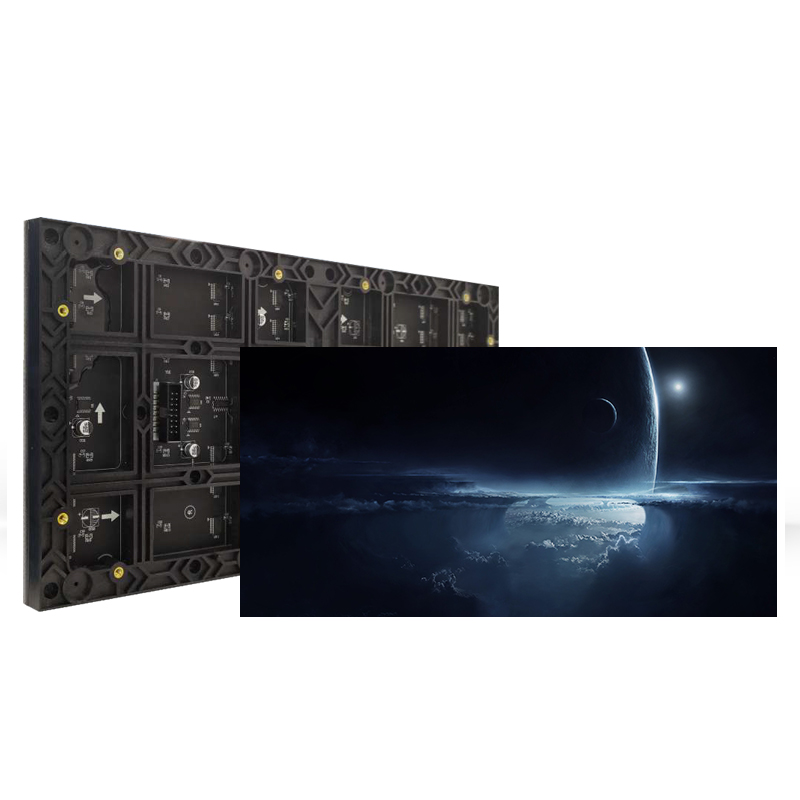

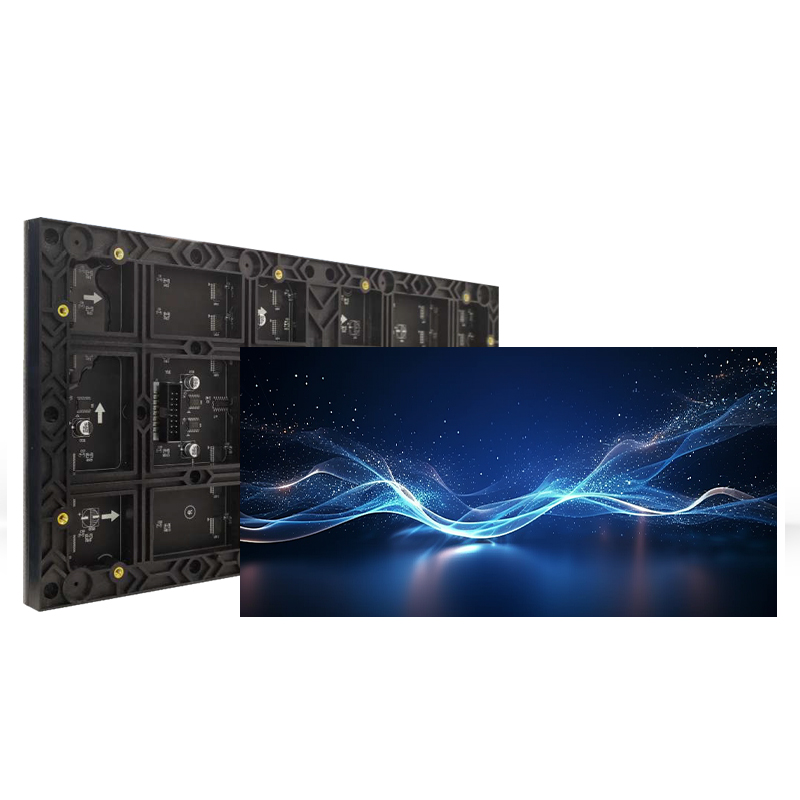

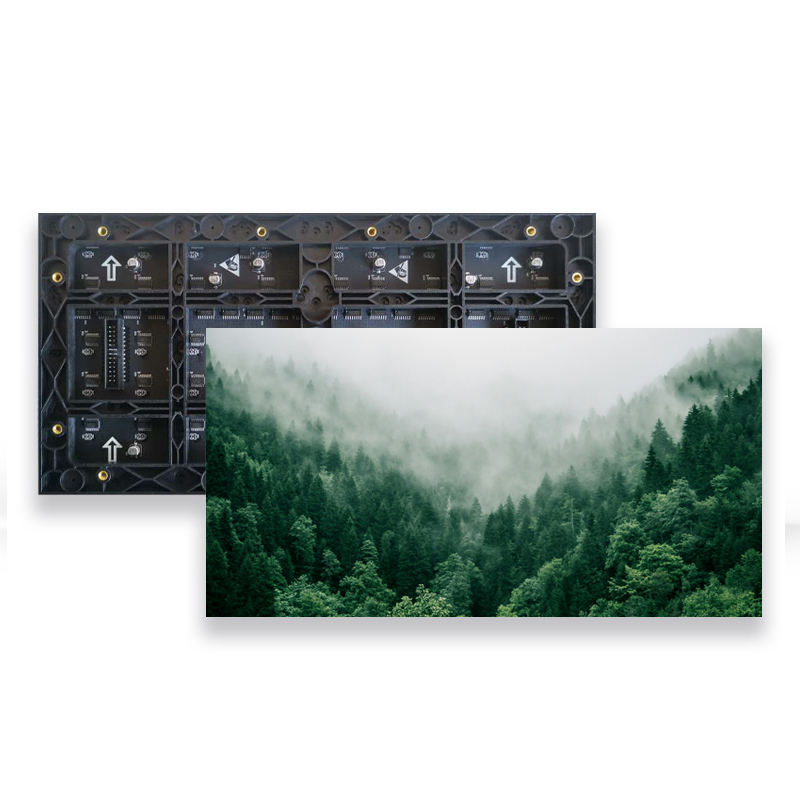

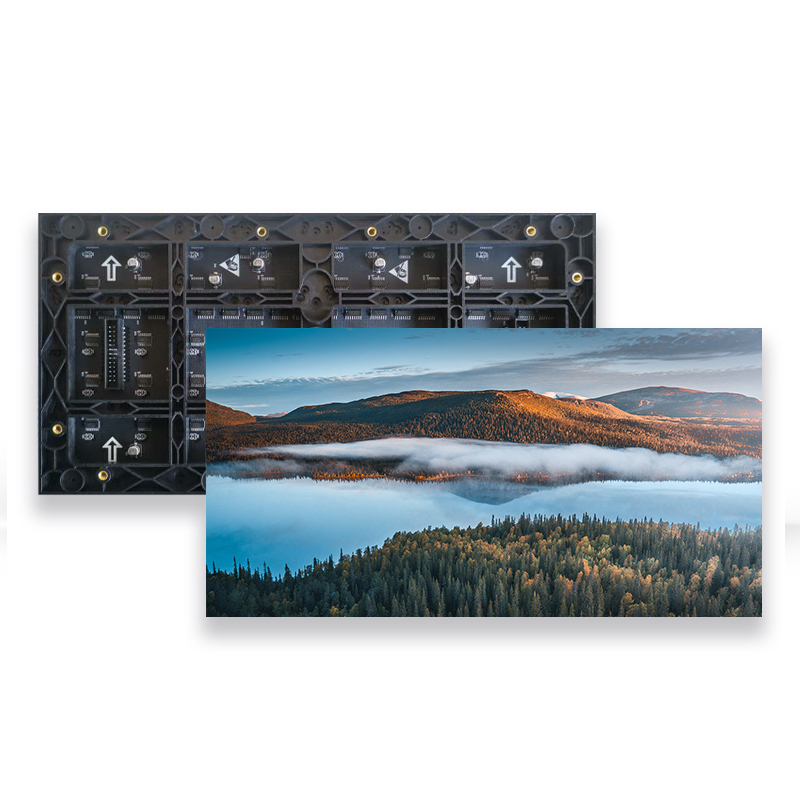

P3 Small-Pitch Full-Color LED Display

Pixel pitch: ≤3mm

Pixel density: ≥111,111 dots/㎡

Module size: 320mm × 160mm

Module resolution: ≥64 × 64

Brightness (cd/㎡): 700, adjustable

Horizontal/vertical viewing angle: ≥160°

Refresh rate: ≥1920Hz

Frame rate: 60Hz

Module power consumption: ≤16W

Peak power consumption: ≤456W

Lifespan: ≥200,000 hours

Indoor LED Video Wall Display


With a pixel pitch of just 3mm, the P3 Indoor Full-Color LED Screen offers exceptional resolution, ensuring that every detail is displayed with precision and clarity. Whether showcasing advertising content, engaging audiences with dynamic visuals, or delivering important information, this LED screen provides an immersive viewing experience that captivates and impresses.

Equipped with advanced LED technology, the P3 Indoor Full-Color LED Screen delivers superior brightness and color uniformity, ensuring that images and videos are displayed with striking vibrancy and consistency. The high refresh rate and excellent grayscale performance further enhance the visual quality, making this LED screen a standout choice for demanding indoor display requirements.

Designed for seamless integration and easy installation, the P3 Indoor Full-Color LED Screen features a lightweight and slim panel design, allowing for flexible mounting options and hassle-free setup. Its durable construction and reliable performance ensure long-term operation with minimal maintenance, making it a cost-effective investment for businesses and organizations.

Product Parameters

Pixel Pitch(mm)33
Display resolution(dots)64×64=409664×64=4096
Physical Density (Pixels/ ㎡)111111111111
LED EncapsulationSMD2121SMD2121
Pixel specifications1R1G1B1R1G1B
Module Size(mm)L192×H192×T15L192×H192×T15
Module Weigth(g/pcs)340243
Driving mode1/32SConstant current drive1/64SConstant current drive
Module Consumption(W)≤16≤10
Max. Power Consumption(w/㎡)≤456≤271
Refresh Frequency (Hz)19203840
Optimum Viewing AngleH:160° V:160°H:160°   V:160°
Gray Scale (bit) 12/6 12/6
Frame Frequency (Hz)≥60≥60
Module Working Voltage(V)4.8-5.24.8-5.2
Operating Temperature/Humidity(C/RH) -10°C-+40°C10%RH-90%RH -10°C-+40°C10%RH-90%RH
